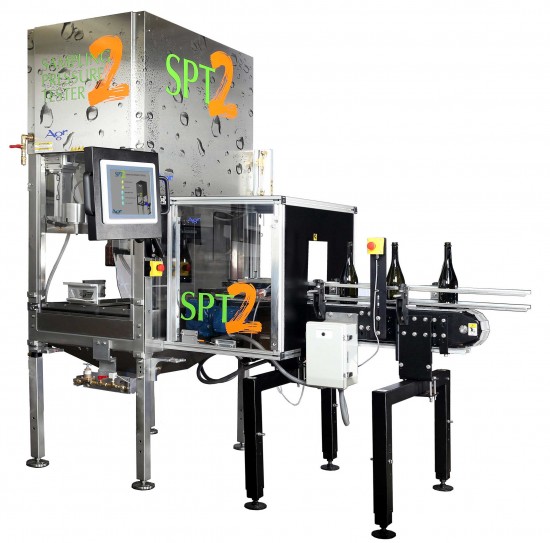

Sampling Pressure Tester 2

Automated pressure testing and volume measurement for glass containers

The Agr Sampling Pressure Tester 2 (SPT2) automated testing station provides critical pressure strength and volume performance data for glass containers, on a sampling basis on the production floor. Integrated into the production line, it automatically tests and collects pressure and volume data on bottles selected for sampling, without operator intervention, on a 24/7 basis.


  • Advanced pressure generation system for testing up to 69 bar (1000 psi), designed to meet requirements of ASTM C-147 and ISO 7458
  • Precise volume measurement, using positive displacement technology
  • Smooth, robotic handling to accommodate various bottle heights and diameters
  • Handling and event-based operation allows for up to 270 bph
  • Universal bottle clamps accommodate finishes from 20-48 mm without job change
  • Rugged stainless steel components
  • Technologically-advanced compensating pressure seal
  • Multi-line compatibility for bottles of different sizes and finishes
  • Linux operating platform for efficient operation in plant environment
