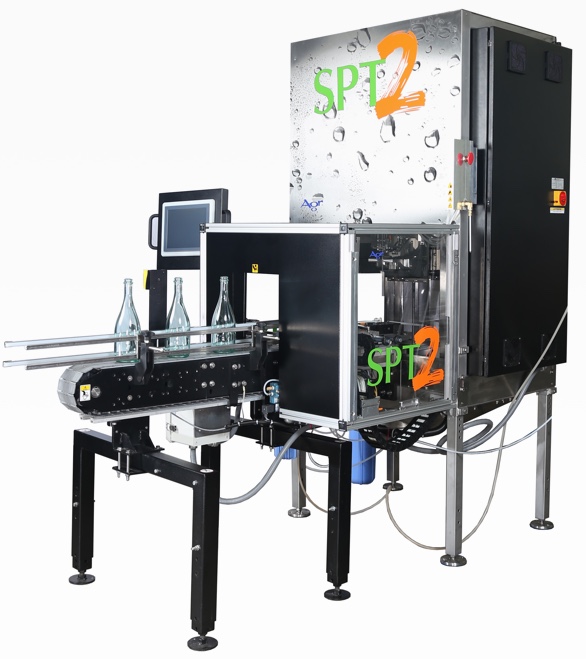

SAMPLING PRESSURE TESTER 2 (SPT2)

The solution for overextended testing labs, improving testing throughput, and better data - when you need it.
SAMPLING PRESSURE TESTER 2 (SPT2)
>

SPT2 is designed to...

design1

Help you protect your brand through efficient, continuous and precise pressure and volume testing

design2

Ensure that all containers meet expected pressure requirements and volume and fill levels are to specification

design3

Be an automated solution for the quality management of glass bottles to meet critical testing needs

>

Two Testing Systems in One

Pressure testing system & Volume measurement system

Eliminate your testing backlog with more tests, more often. More timely and relevant testing results mean more responsive process management.

  • 24/7 continuous operation – testing around the clock
  • Hands free operation
  • 270 bph throughput – 25% greater than other industry offerings
  • Fully automated operation frees resources for more valuable tasks

imagelp

Test more bottles in less time – SPT2 reduces per test costs

Unmatched testing accuracy and precision

SPT2 Features to make pressure and volume testing easier

PRESSURE TESTING

Precise, controlled pressure testing available over a wide range of ware
  • High pressure testing to 69 bar (1000psi)
  • Accuracy pressurization better than 1% of full scale throughout the range
  • Superb low pressure management with differentiation between leaks and low pressure breaks
  • Accurate low-end pressure control and measurement as low as 1.4 bars (20 psi) eliminates false tests
  • Fully meets ASTM C147

VOLUME MEASUREMENT

Laboratory precision on the plant floor!
  • Volume measurement performed on a scheduled basis  –  any time of day
  • Measurement performance better than all leading technologies
  • Test round or non-round bottles
  • Leading edge, positive-displacement technology for maximum accuracy
  • Controlled fill – for precise volume or fill height measurements
  • Accuracy not affected by the water density or flow rate
  • User-defined volume and fill measurements – at any point within the fill process
  • 3 volume measurements in 1 test
>

Versatile bottle management simplifies setup and supports a wide range of ware - with no job change

bottle

Universal bottle holders
Automatically adjust for finish sizes up to 38mm

height

Automatic height adjustment
Test bottles from 127-406mm

Intuitive User Interface

col1

Touch-panel operation

col2

Easy job setup

col3

Live Status Updates

col4

Test results – for last 20 bottles
